Airport Extension

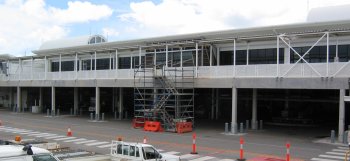

Elevation
Elevation of the completed concrete
The concrete frame extends the existing building and provides access for baggage handling tractors. Temporary props were required for the precast system for short periods. Continuous access was provided to the baggage handling tractors and trailers.

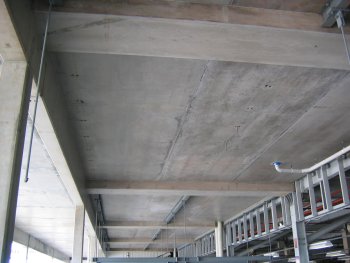

Underside of slab
Soffit
All visible concrete elements are precast including band beams, slab planks, stepped beam and columns.

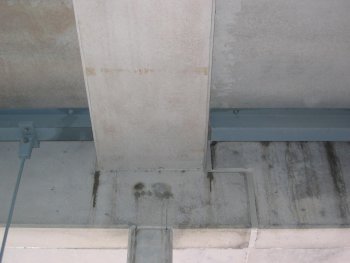

Precast Connections
Precast connections
Connections were by grouted dowel bars between components. The steel beams are to support baggage handling equipment installed later.
Connect to existing building
Band beam connection to existing steel column
"Threading the eye of a needle". The precast band beam had to fit between existing stormwater downpipes.
